Larson Electronics 77' Hydraulic Megatower™ - 33' Gooseneck Trailer - 20KW Genset w/ 110 Gal Fuel Tank - No Lights
Description

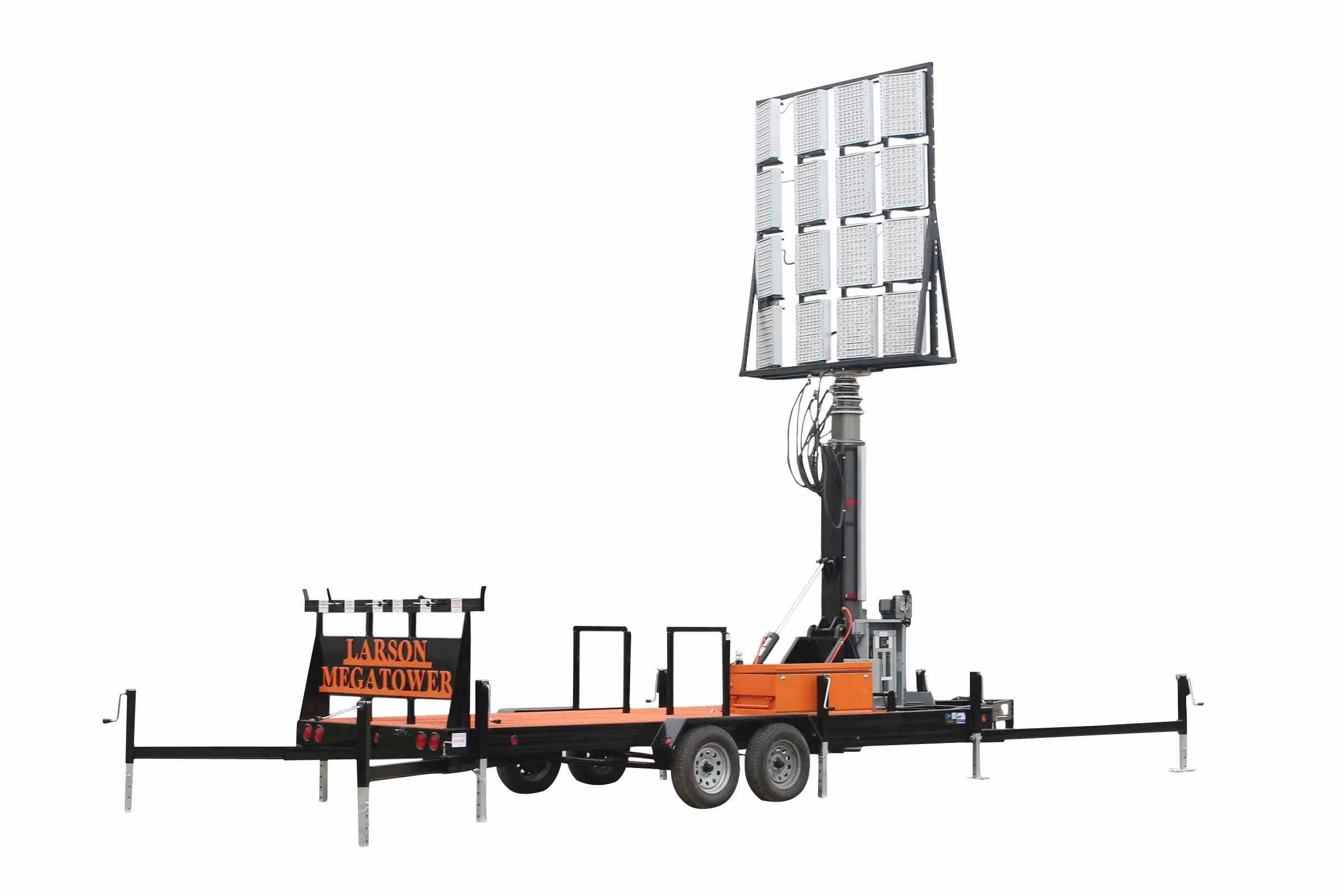

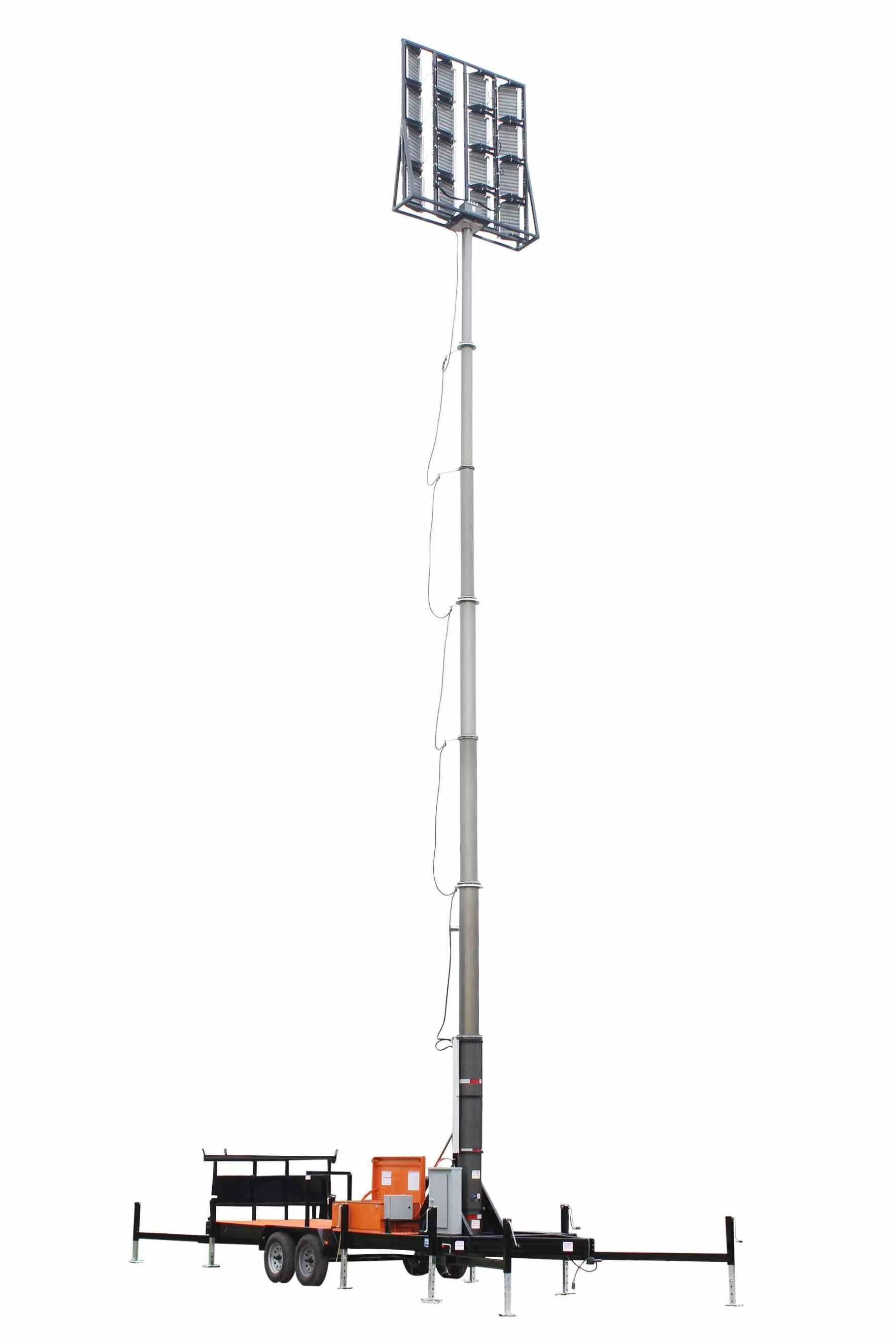

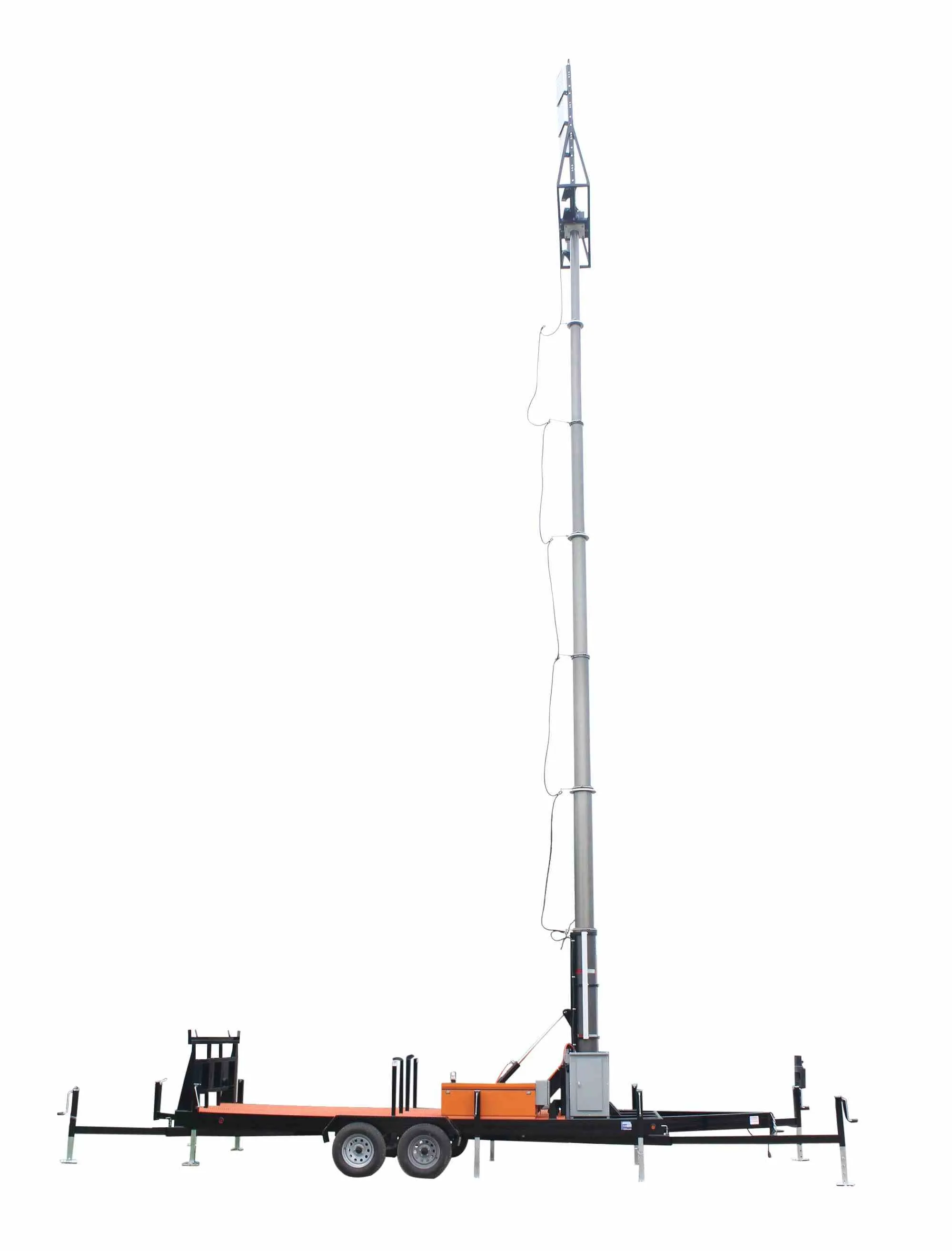

The WCDE-11-HLM65 trailer-mounted Megatower™ from Larson Electronics is a powerful mobile tower designed for mounting lights or equipment in elevated positions, making it ideal for large-scale event illumination, construction sites, mining, and industrial operations. Powered by a 20KW Kubota generator, this hydraulic tower delivers power to customer-supplied equipment, supporting operations in harsh environments. The robust mast can be raised to heights over 65 feet, with a maximum extension of 77 feet, ensuring optimal reach for wide-area coverage.
Built for rough applications, the tower’s hydraulic telescoping boom features a galvanized finish and carbon steel construction, with reinforced steel I-beam supports for stability. This versatile mobile solution can be used for extended periods thanks to its external oil pump system, requiring oil changes only every 3,000 hours. Its cold weather package includes a de-icing system and cold-rated hydraulic hoses, making it suitable for operations in sub-zero climates.
Key Features
- Versatile Power Source: 20KW generator with single-phase 120/240V output for diverse equipment requirements.
- Reliable Cold Weather Operation: Equipped with a de-icing system and insulated hydraulic control box for extreme climates.
- Hydraulic Mast Adjustment: Easily raise and lower the mast using a push-button hydraulic system.
- Sturdy Trailer Design: Four-wheel trailer with gooseneck hitch and industrial-grade paint finish for secure, rugged transport.
- Customizable: Compatible with a variety of customer-provided light heads and equipment, adaptable to specific project needs.
Detailed Specifications
Generator Specifications
| Specification | Details |
|---|---|
| Engine Model | Perkins, 28.9 HP |
| Power Output | 20KW (Single-Phase 120/240V) |
| Fuel Type | Diesel |
| Cooling | Liquid-cooled |
| Fuel Tank Capacity | 110 Gallons |
| Fuel Delivery System | Electric, with anti-splash baffles |
| Sound Level | 68 dB at full load (23’ away) |
| Cold Weather Features | De-icing, insulated controls, cold-rated hoses |
Light Mast Specifications
| Specification | Details |
|---|---|
| Material | Carbon Steel |
| Finish | Galvanized |
| Tower Height (Collapsed) | 33 feet |
| Tower Height (Extended) | 77 feet |
| Operation | Hydraulic |
| Stabilization | 6-point outrigger system with 7,000 lbs leveling jacks |
Trailer Specifications
| Specification | Details |
|---|---|
| Trailer Bed Dimensions | 33’ L x 8’ W |
| Axle Load Capacity | Dual 10,000 lbs axles |
| Wheels and Tires | (8) 16” Steel Rims with P235/80R16 tires |
| Hitch Type | Gooseneck (12” I-beam construction) |
| Outriggers | Extendable 6’ for enhanced stability |
| Leveling Jacks | Six manual, 7,000 lbs hand-crank jacks |
Suggested Applications:
- Construction and Mining Sites
- Large Scale Event Illumination
- Outdoor Job Site Lighting
- Remote Industrial Operations
In Package
- (1) WCDE-11-HLM65 Trailer-Mounted Megatower™
- (1) 20KW Kubota Generator with Cold Weather Package
- (1) 6-Point Outrigger System with Leveling Jacks
